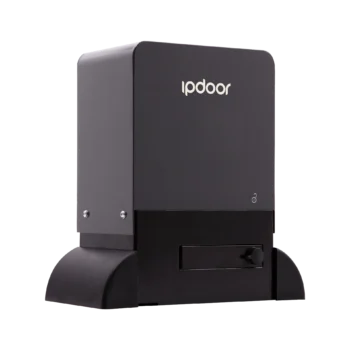

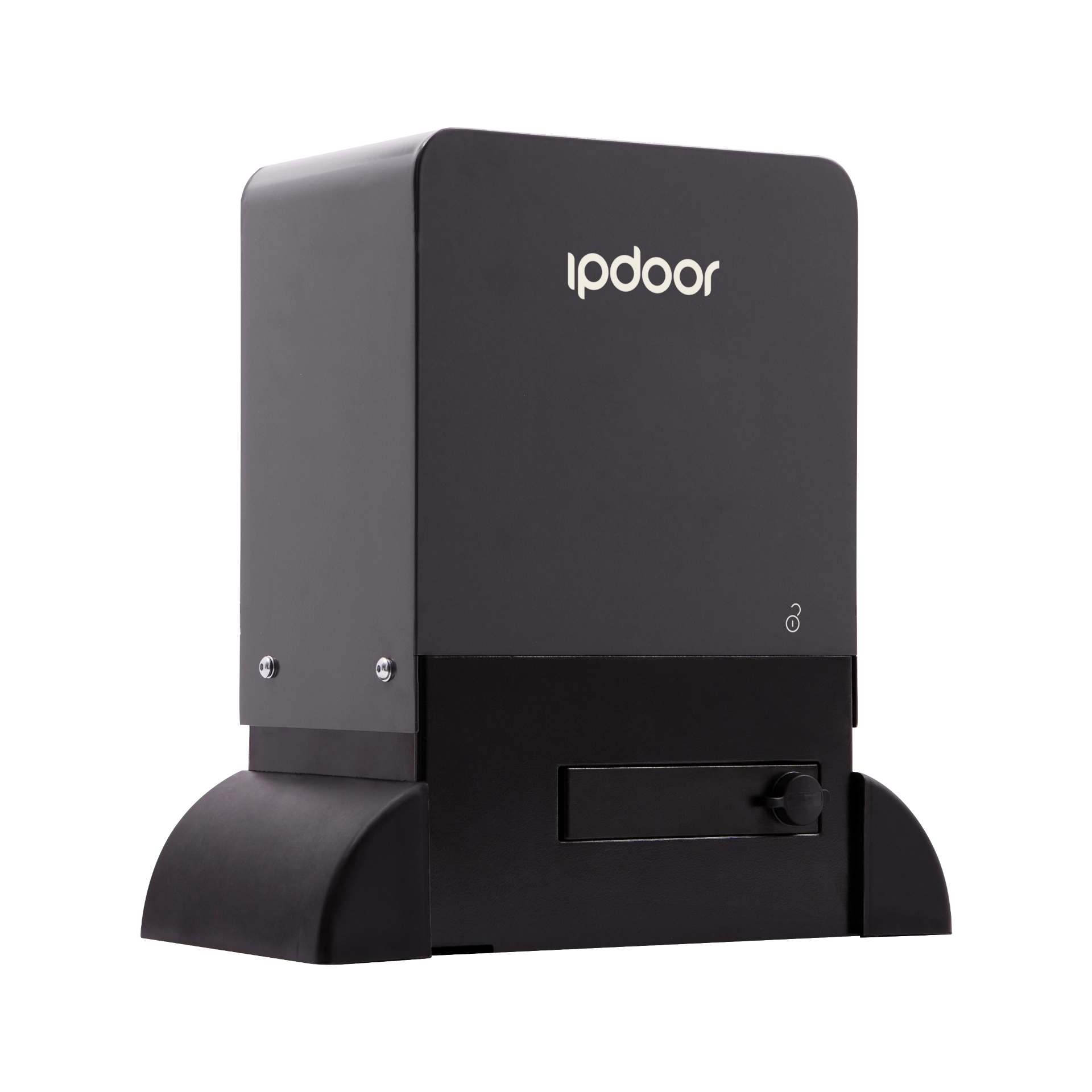

Mechanical actuator for sliding gates

The Titan gear motor is designed for the automation of sliding gates up to 2000 kg, making it ideal for industrial and condominium applications that require high durability and continuous operation. The oil-bath lubrication system, applied to both the gearbox and motor housing, ensures constant lubrication, minimizing wear and extending the lifespan of the device even in the most demanding usage conditions.

Design

Die-cast aluminum structure, treated with anti-corrosion paint, ensuring maximum resistance to weather conditions.
Compact dimensions (325x345x160 mm) with a painted steel cover, for a more versatile and protected installation.
Adjustable mounting plate, allowing flexible installation in various settings.

Reliability

In industrial settings, Titan is a reliable and secure solution for automating sliding gates. Designed to deliver optimal performance even under intensive usage conditions, its oil-bath lubrication system and durable aluminum structure provide long-term protection against wear and environmental factors. Titan enables companies to enhance access security and improve operational efficiency without compromise.

Electronics

Integrated control board, with intuitive programming and LED diagnostics for real-time status monitoring. Built-in 433 MHz rolling code radio receiver, ensuring secure control and preventing unauthorized access.
Magnetic limit switches, providing precise and reliable gate movement control. Magnetic encoder, ensuring smooth motion and safe deceleration management for both opening and closing operations.

Mechanics

Ergonomic manual release with personalized key, ensuring secure access when needed. Oil-bath lubrication system, delivering superior performance and long-lasting durability. Seamless integration with access control and industrial automation systems, enabling centralized and efficient gate management. Smooth and quiet operation, thanks to continuous lubrication and premium-quality mechanical components.

Technical features

SLT2320G0501
Capacity 2000 Kg
Supply voltage 230 VAC
IP Grade IP55
Weight 21 Kg
Maximum Speed 10 m/min
Output Revolutions 50
Number of Z-Pinion Module 4 16
Gear Teeth

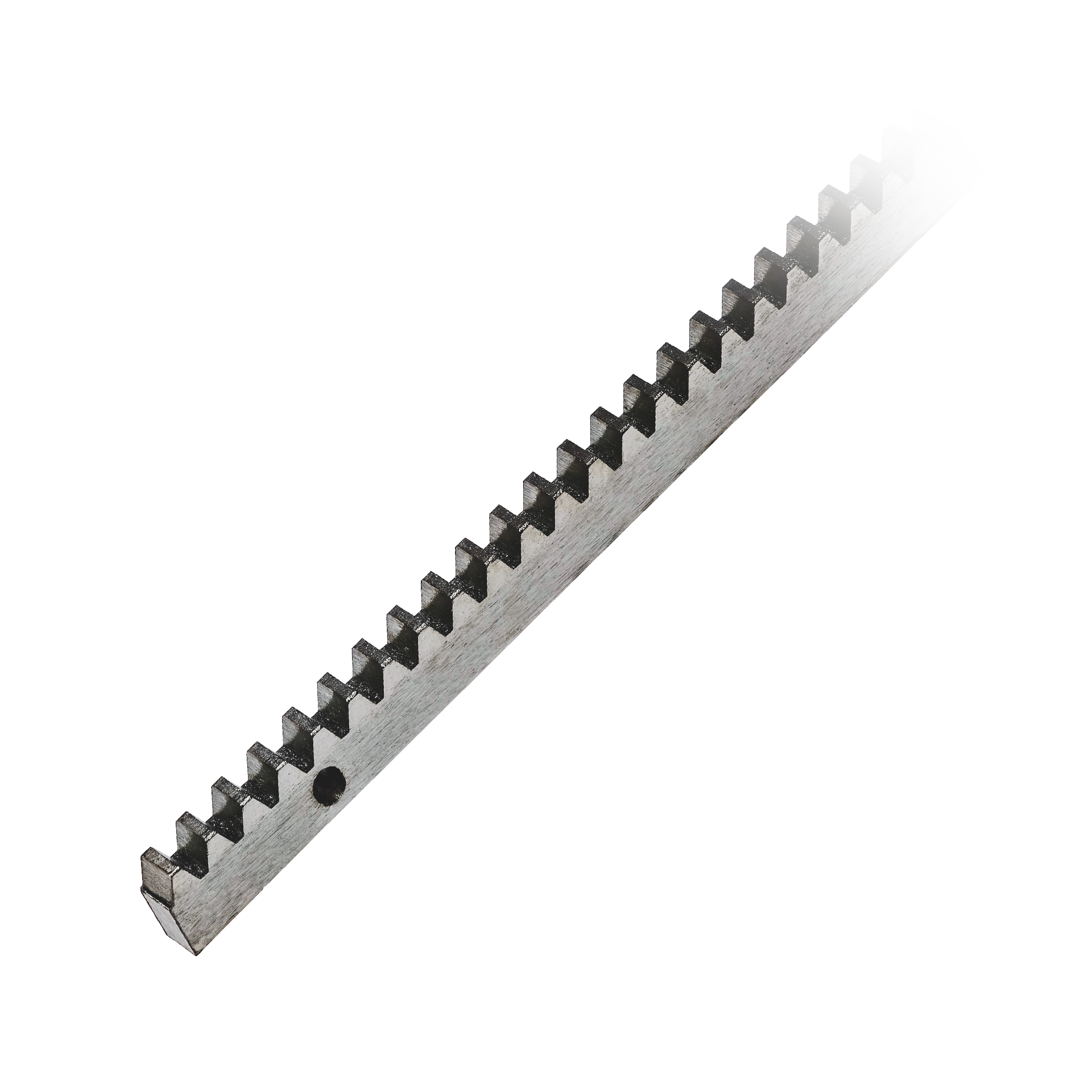

Rack Module 4
Maximum initial power consumption 650 W
Output Torque 70 N/m
Work Cycle (Cycles / H) 45
Duty cycle 90%
Built-in Encoder on Electric Motor
Encrypted Unlock Key
Electromechanical Limit Switch
Batteries
Digital TPI
Magnetic Limit Switch
Diagniostic interface (RGB+Acustic)
Unlock lever activation sensor
Wi-Fi Module

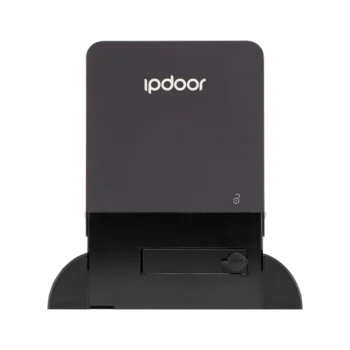

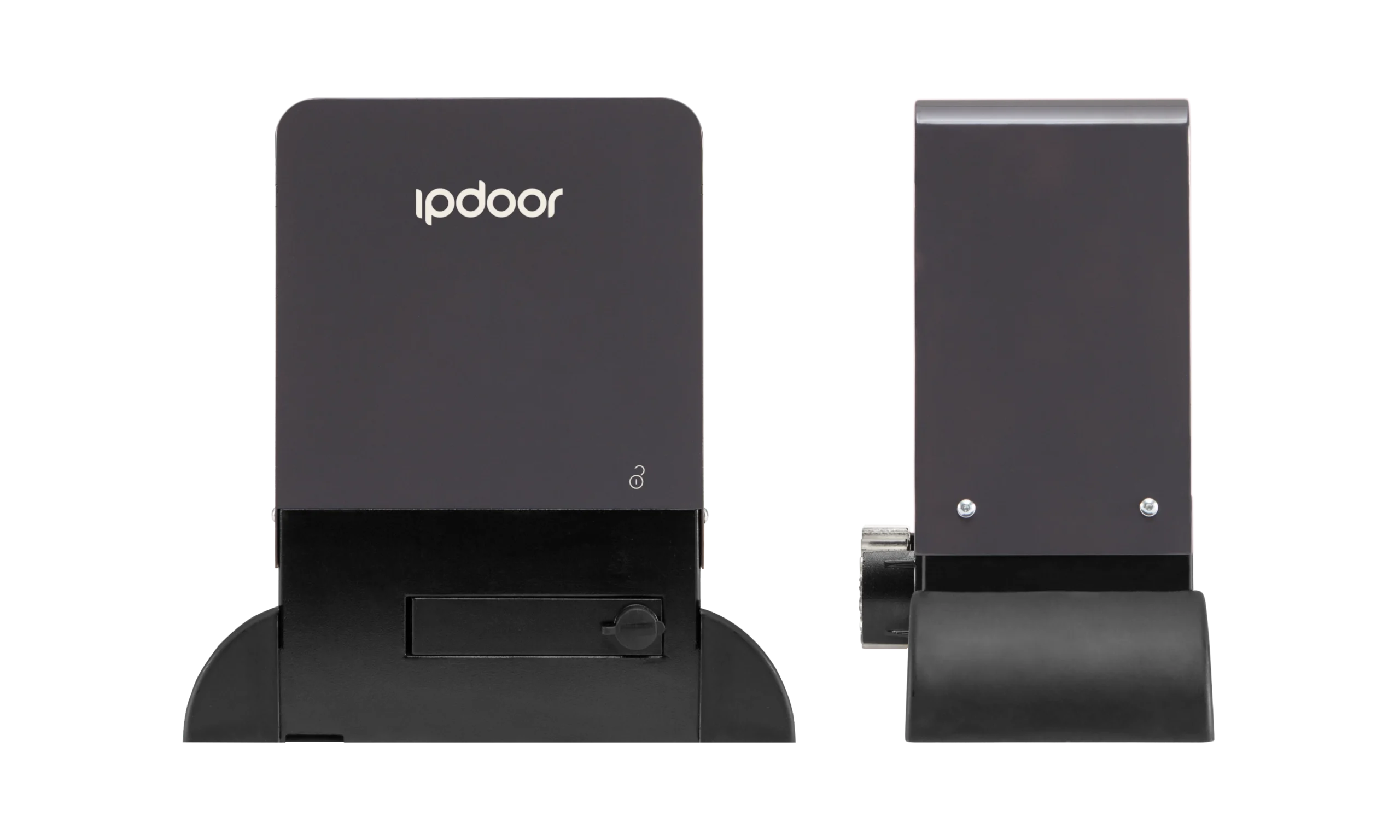

TITAN Front Side

Length: 325mm

Height: 345mm

Depth: 160mm
