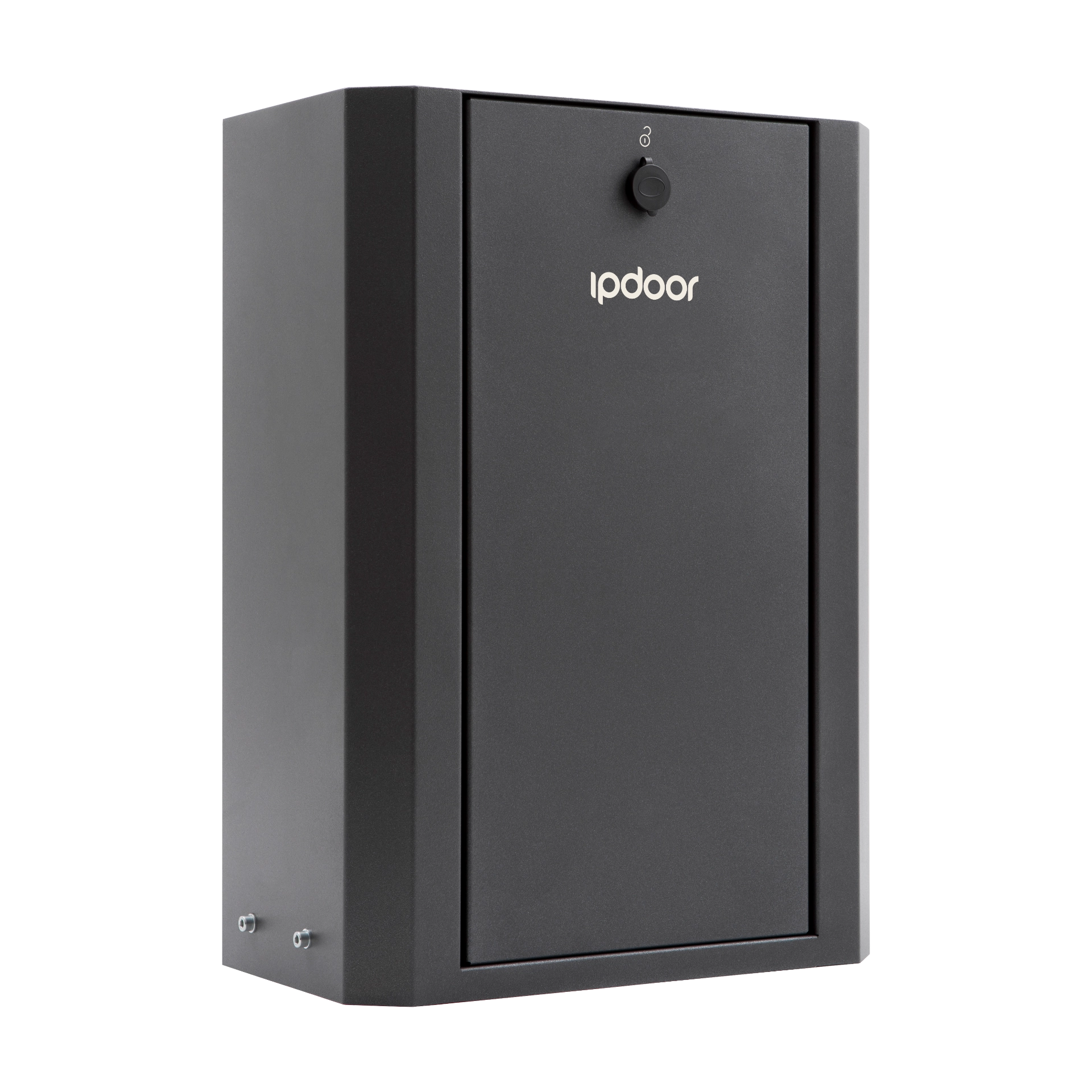

Mechanical actuator for sliding gates

Sirio is a three-phase electromechanical gearmotor, designed for the automation of industrial sliding gates up to 5000kg. Available in a 400V version, it features an oil-bath reducer for high and lasting performance, ensuring safety and precision of movement through its electromechanical end-of-travel system and mechanical clutch with electro-brake.

Design

Sirio stands out for its robust and functional design, ideal for industrial applications. Its aluminum structure, treated with anti-corrosive paint, ensures resistance to weathering while maintaining a professional and durable appearance over time. The safety door with a personal key emphasizes attention to security and practicality, integrating aesthetics and functionality into a single product.

Modularity

Sirio offers excellent modularity, thanks to the possibility of extending the electromechanical end-of-travel and the presence of an easily accessible internal control board. These features make it adaptable to different operational contexts, allowing customization based on specific installation and use requirements.

Electronics

The heart of Sirio is represented by its advanced electronics, with an internal and protected control board, ensuring optimal management of the three-phase motor. This allows for intensive use with maximum power, while ensuring safety and reliability. The extendable electromechanical end-of-travel optimizes opening and closing phases, making “Sirio” an ideal solution for the most demanding needs.

Mechanics

The mechanics of Sirio are designed to withstand the most severe usage conditions. The oil-bath reducer and the mechanical clutch with electro-brake ensure high performance and long life, even in intensive use conditions. The key for manual emergency unlocking offers a practical solution for emergency management, highlighting the commitment to safety and maintainability.

All the features and options

1 Power and Durability

Sirio is equipped with a three-phase motor that ensures maximum power to move gates up to 5000Kg, making it ideal for industrial applications where intensive use is the norm. Its robust construction and oil-bath reducer promise long-lasting reliability without compromise.

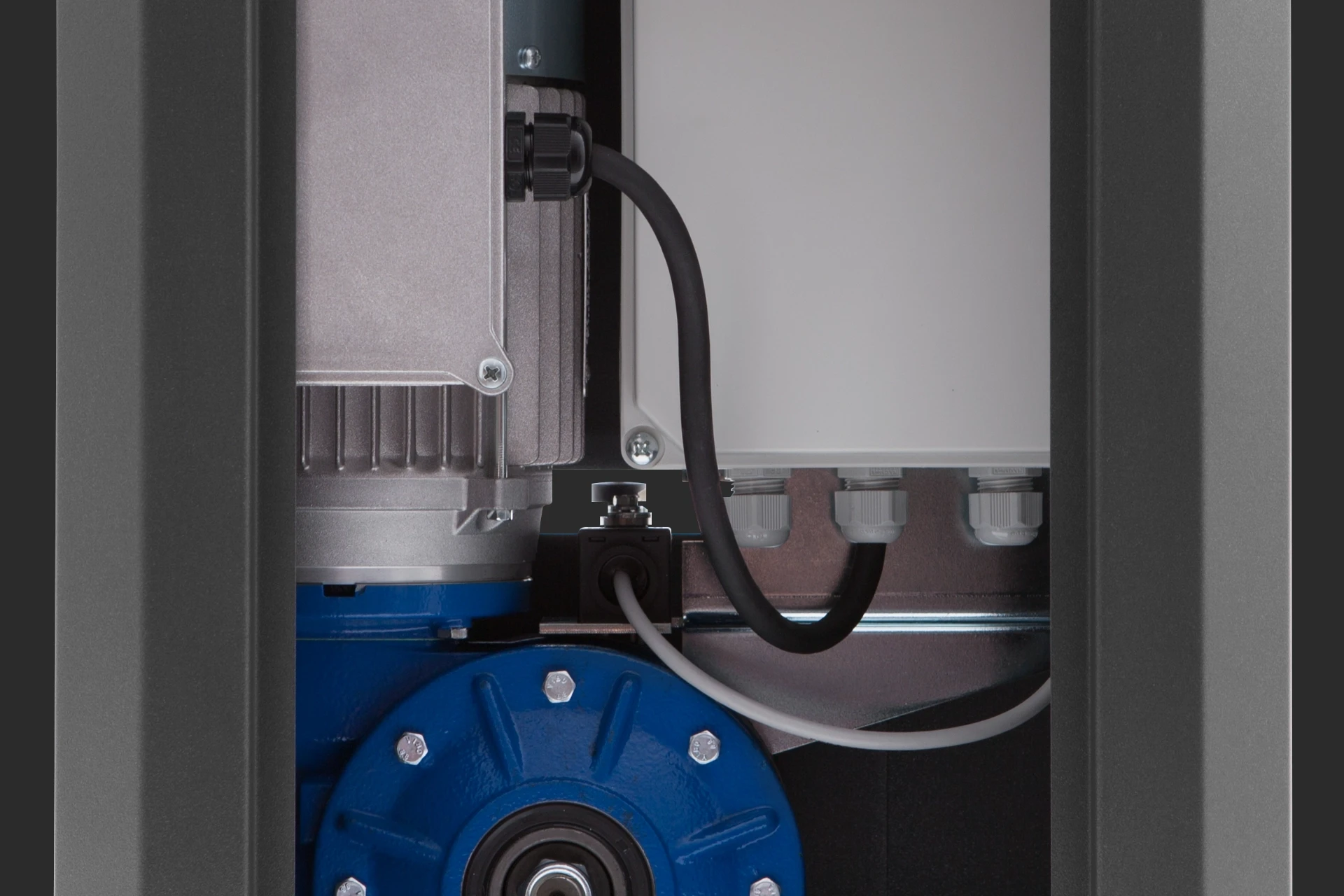

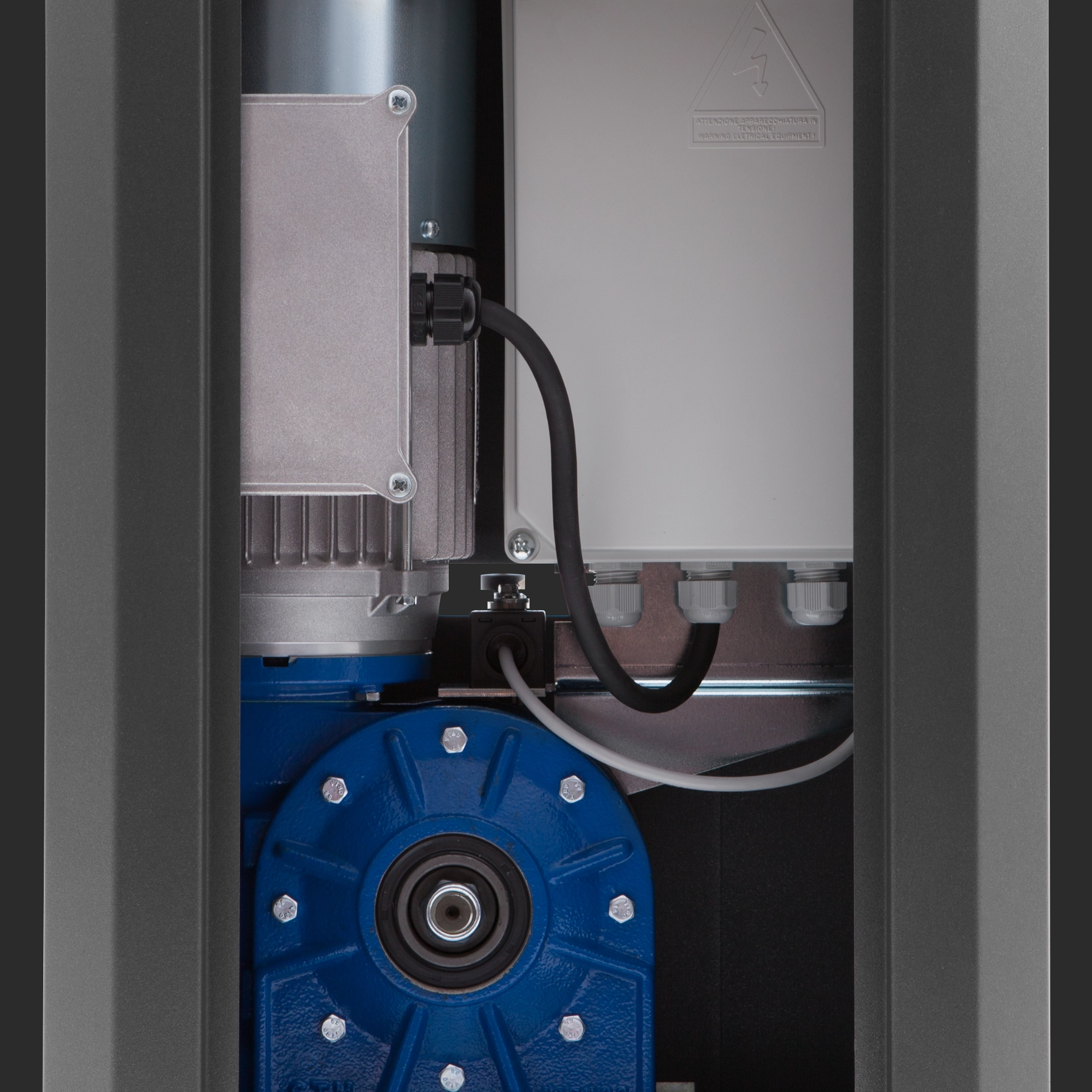

SIRIO Frizione meccanica e motoriduttore

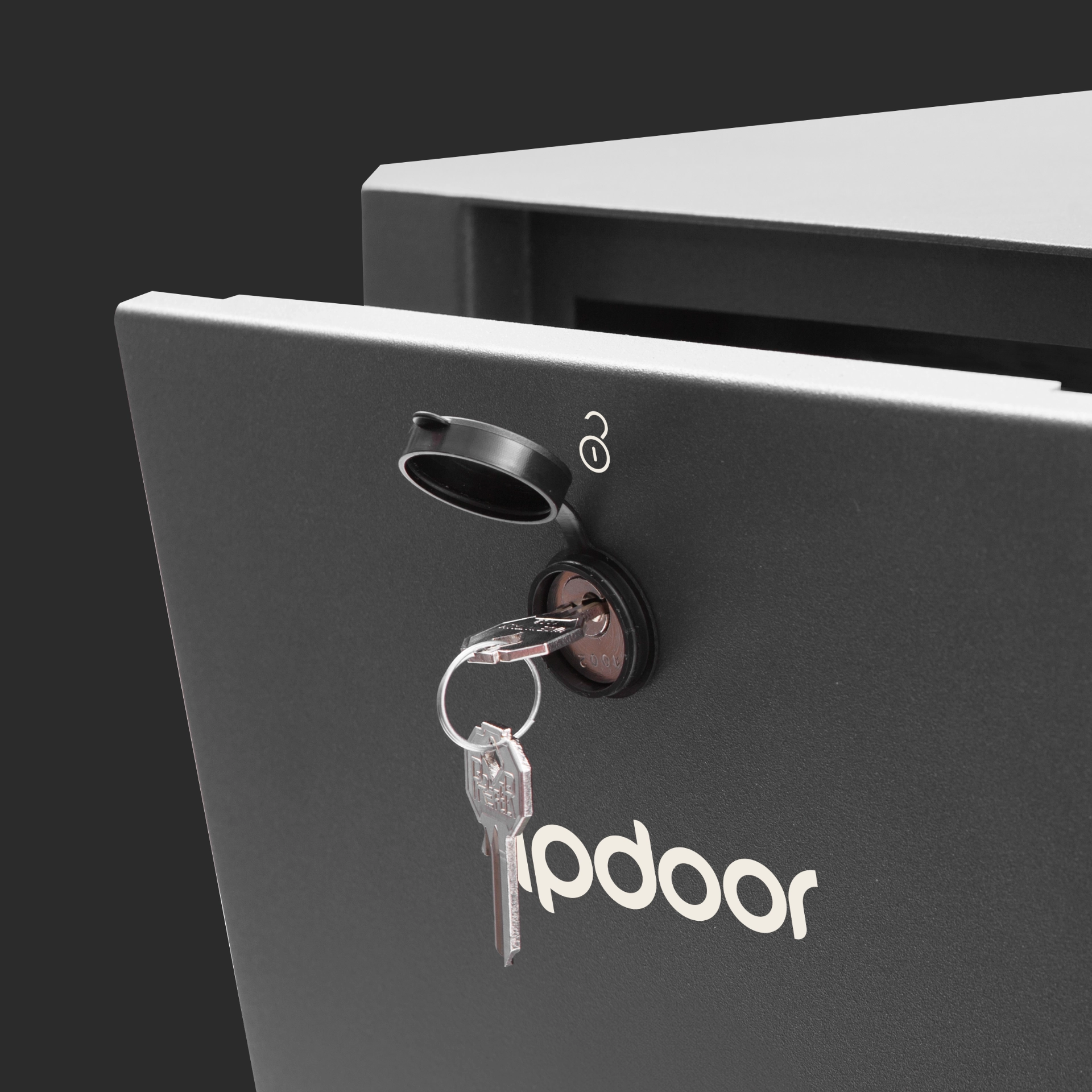

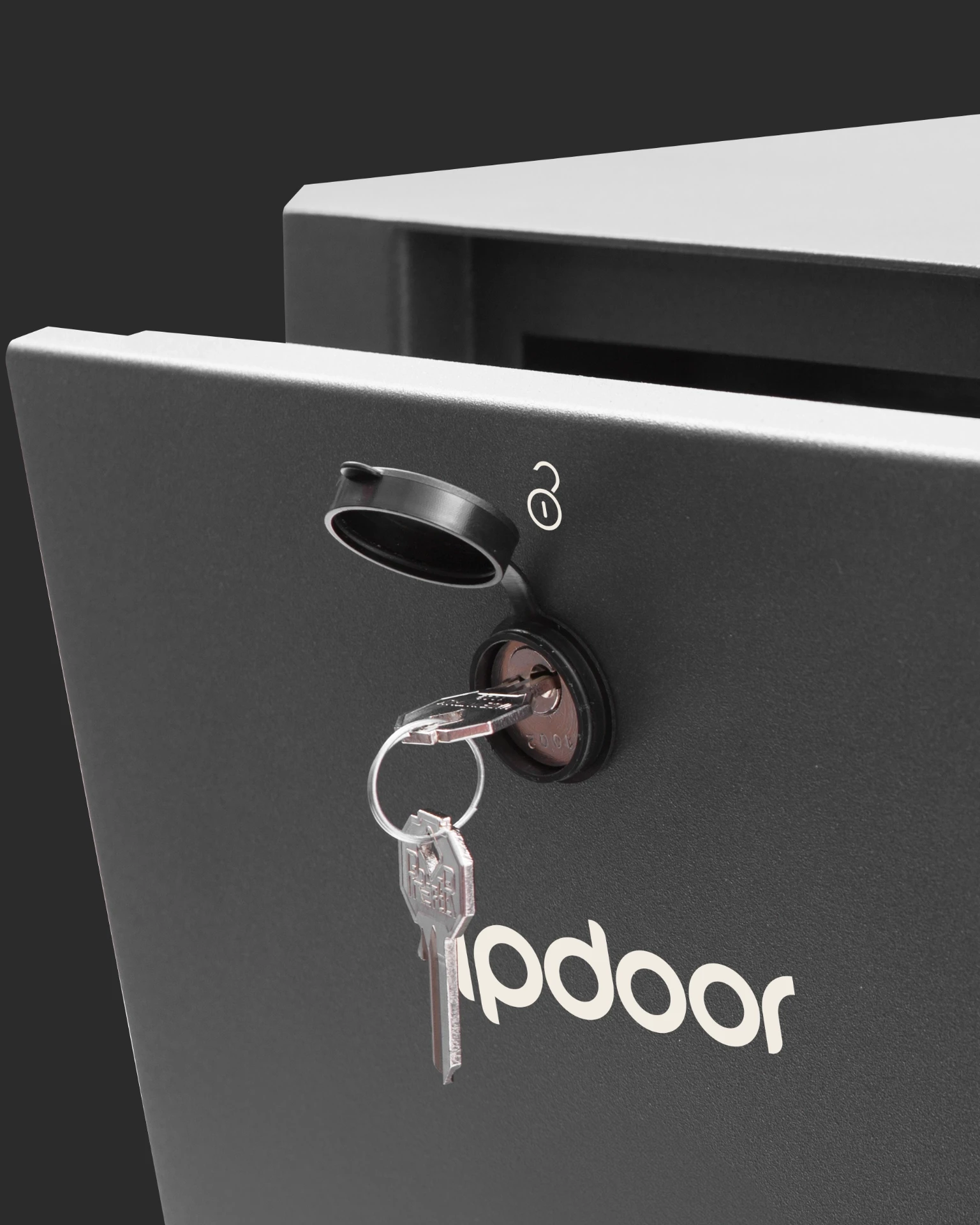

SIRIO Portello di sicurezza con chiave personale

2 Advanced Safety

Safety is at the forefront of Sirio’s design, with a safety door equipped with a personal key and an electro-brake that reduces stopping space, increasing safety for users and protecting assets

3 Ease of Maintenance

The presence of a key for manual emergency unlocking and the protected internal control board facilitate maintenance and intervention operations, reducing downtime and ensuring effective management even in critical situations.

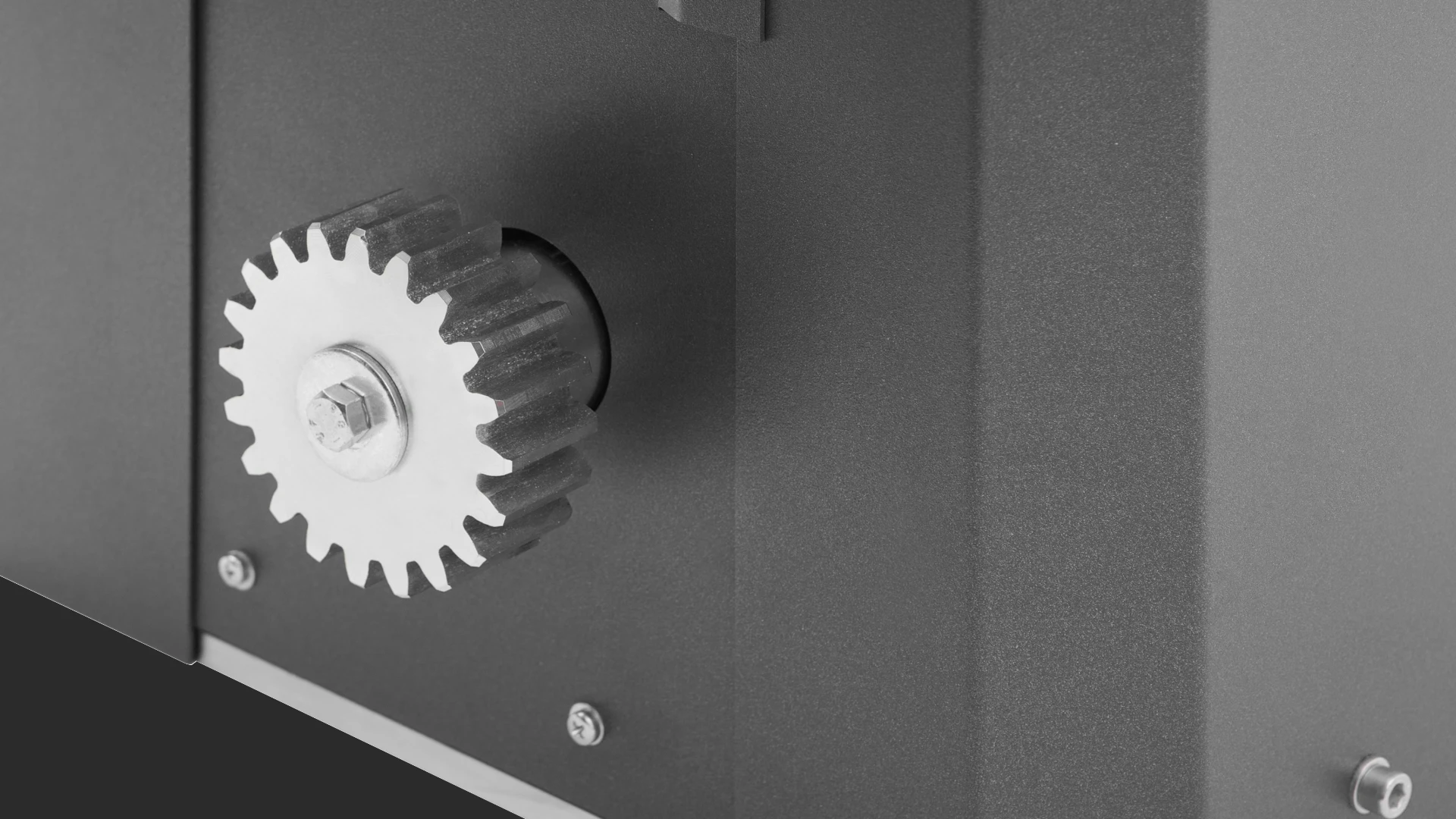

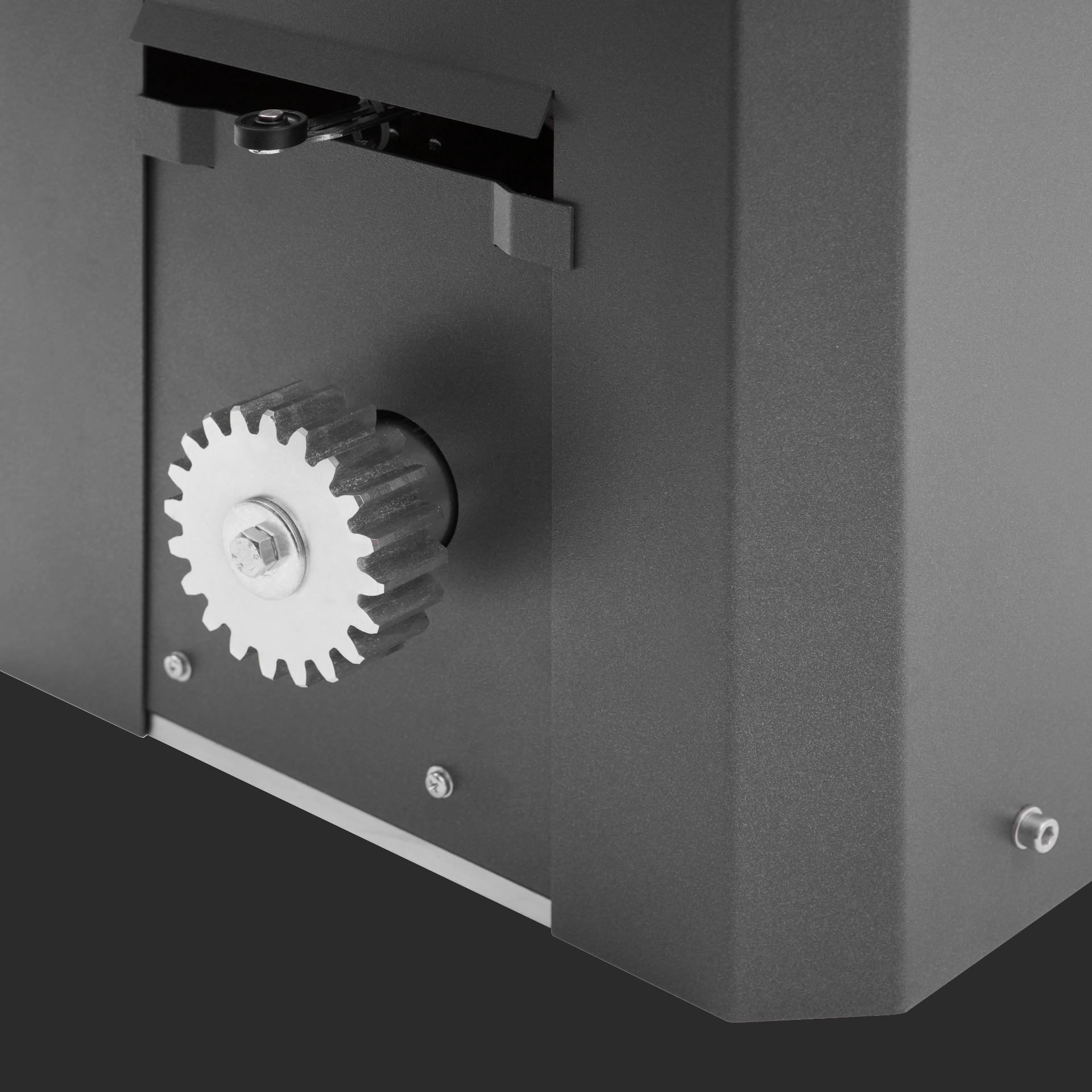

SIRIO Fine corsa e ingranaggi

Technical features

SLS4050M0501
Capacity 5000 Kg
Supply voltage 400 VAC
IP Grade IP54
Weight 44 Kg
Maximum Speed 8,3 m/min
Output Revolutions 33
Number of Z-Pinion Module 4 20
Gear Teeth
Rack Module 4
Maximum initial power consumption 750 W
Output Torque 85 N/m
Work Cycle (Cycles / H) 45
Duty cycle 90%
Built-in Encoder on Electric Motor
Encrypted Unlock Key
Electromechanical Limit Switch
Batteries
Digital TPI
Magnetic Limit Switch
Diagniostic interface (RGB+Acustic)
Unlock lever activation sensor
Wi-Fi Module

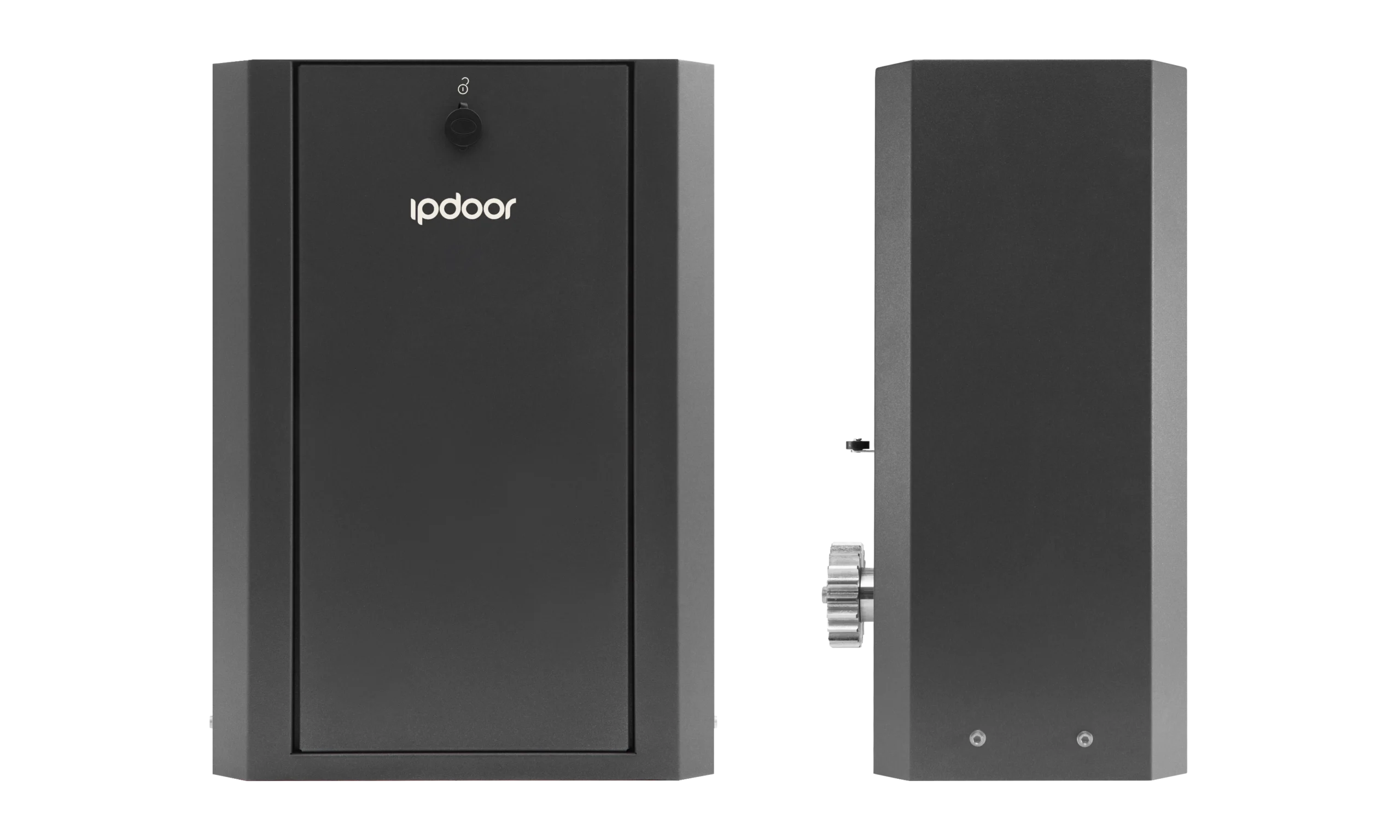

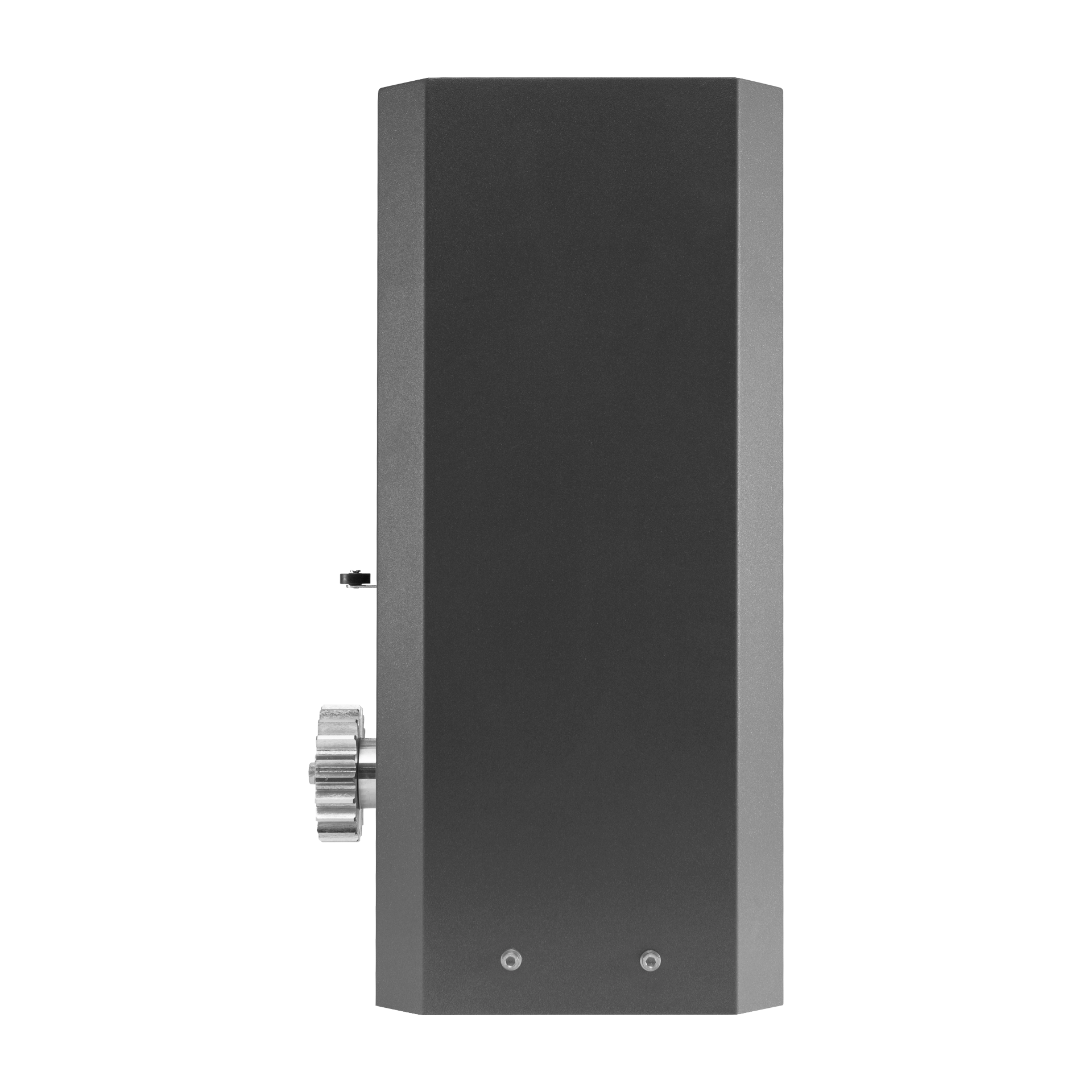

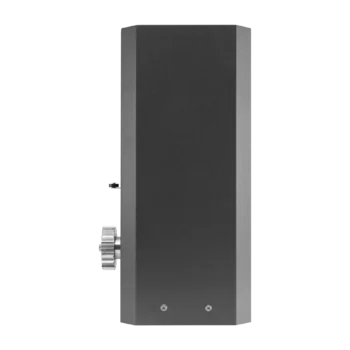

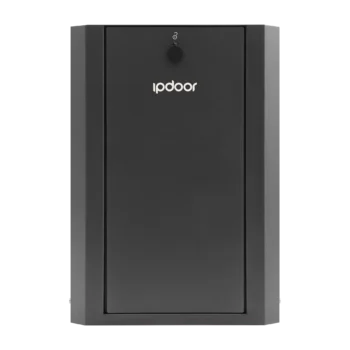

SIRIO Front and side

Length: 380mm

Height: 540mm

Depth: 240mm
